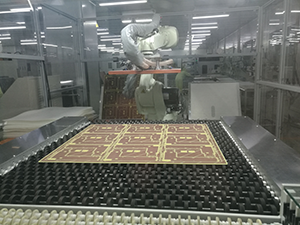

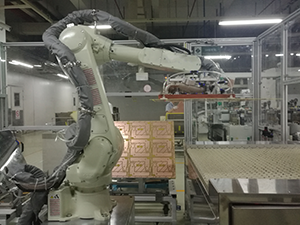

Robotic Loader / Unloader for Brown Oxide

System Workflow

The system is integrated with brown oxide line. Here is the workflow:
1) Withdraw panel from rack and load to brown oxide conveyor.
2) Unload panel from brown oxide line.
3) Deliver the panel to desire position for storage or pre-layup.
4) Place prepreg for pre-layup.
After finishing the pre-layup, the stack could be conveyed to layup clean room for further process.

Benefits

- Cost effective - only one operator is needed for brown oxide process, with addition of pre-layup. The workload of layup process has also been reduced.
- No human handling during the entire brown oxide process to avoid scratching or any other handling issue.

Specifications

Item		Description
Machine Configuration	Dimension (L x W x H)	Loader: 2,700 x 3,300 x 1,800mm Unloader: 3,400 x 3,300 x 1,800mm
	Power Consumption	6KW
	No. Of CCD	2
	Panel Handling	Robotic Arm + Vacuum Nozzles
	Productivity	9-11 pcs / min
Panel Configuration	Dimension	Min. 360 x 360mm Max. 650 x 650mm
	Thickness	0.075-3.2mm
