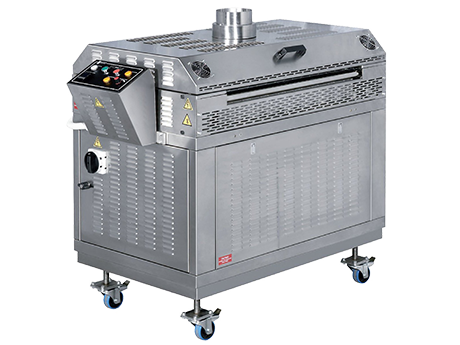

Pre-Heater - DynaChem PH Series
Featuers
- Pre-heat by IR panels to achieve rapid ramping and uniform heating.
- Non-contact heating avoid board surface contamination.
- Easy integration with other module.
Specifications
Depends on different panel thickness and ramping requirement, DynaChem provides three models for different needs.
| Item | PH830 | PH850 | PH8030 | |
| Machine Configuration |
Dimension (L x W x H) |
1,290 x 700 x 1,340mm | 1,340 x 1,160 x 1,340mm | 1,290 x 700 x 1,340mm |
| Working Height | 860-1,060mm | 860-1,060mm | 860-1,060mm | |
| Heating Device | IR Panel x 2 | IR Panel x 4 | IR Panel x 2 | |
| Temperature | Max. 500°C | Max. 450°C | Max. 500°C | |
| Conveyor Speed | Max. 5m/min | Max. 5m/min | Max. 5m/min | |
| Panel Configuration |
Width | Max. 787mm | Max. 787mm | Max. 787mm |
| Thickness | 0.05-5.0mm | 0.1-12.7mm | 0.05-5.0mm | |
