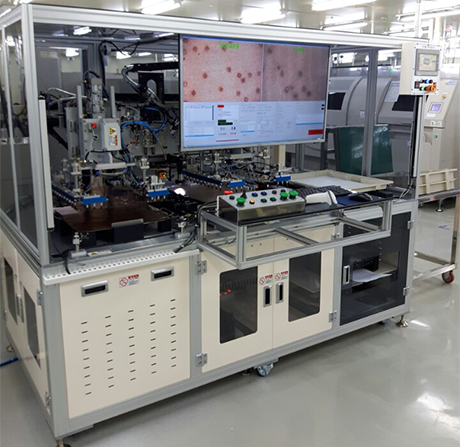

Micro-via Inspection Machine

Benefits

It is an automatic measurement system designed for PCB manufacturer.
- Directly import the CAM data and assign inspection locations. Machine accesses hole size measurement automatically according to preset locations.
- Full automation (inline type) and semi automation are available for intelligent factory. - Dramatically increases efficiency and avoid visual measurement error compared to human measurement.
- Using 100x microscope for visual inspection is very difficult to identity smear at hole bottom. High-resolution camera image could prevent human mistake and mis-judgement.
- Avoid potential damage / scratching by human handling, especially for ultra thin or thick panel.
- Image and measurement data could be saved and export for SPC analysis and engineering report.

Featuers

- Check missing hole.
- Measures hole diameter (top and bottom).

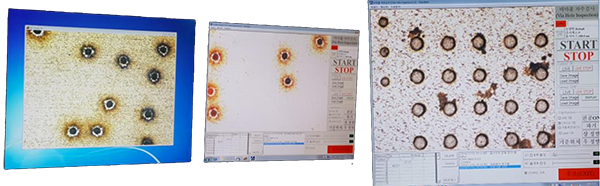

- Clear camera image for inspecting smear and hole shape.
