Drilling Process Setup System

System Workflow

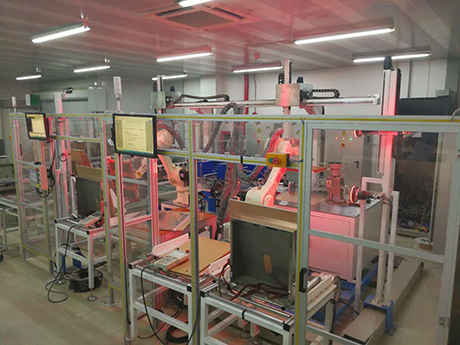

The system is integrated with drilling machine for automatic drill setup. Here is the workflow:
1) Guide pin insertion.
2) Backup board placement.
3) PCB placement.
4) Cover sheet placement (drill entry material).
5) Taping on stack edge.
6) Unloading (after drilling).
Benefits
- Cost effective - the system handles the workload of 8-12 operators.
- No human handling during the entire drilling process to avoid scratching or any other handling issue.
Specifications
Item | Description | |
Machine Configuration |
Dimension (L x W x H) | 5,200 x 5,000 x 3,000mm |
Power Consumption | 16KW | |
No. Of CCD | 2 | |
Panel Handling | Robotic Arm + Vacuum Nozzles | |
Productivity | 6 sets / min | |
Panel Configuration | Dimension | Min. 350 x 350mm Max. 600 x 900mm |
Thickness | 0.5-5.0mm |
